01
SMB-S Series
Single-furnace arrangement covering SMB-10 through SMB-50 models.
SMB-S / SMB-TF Series

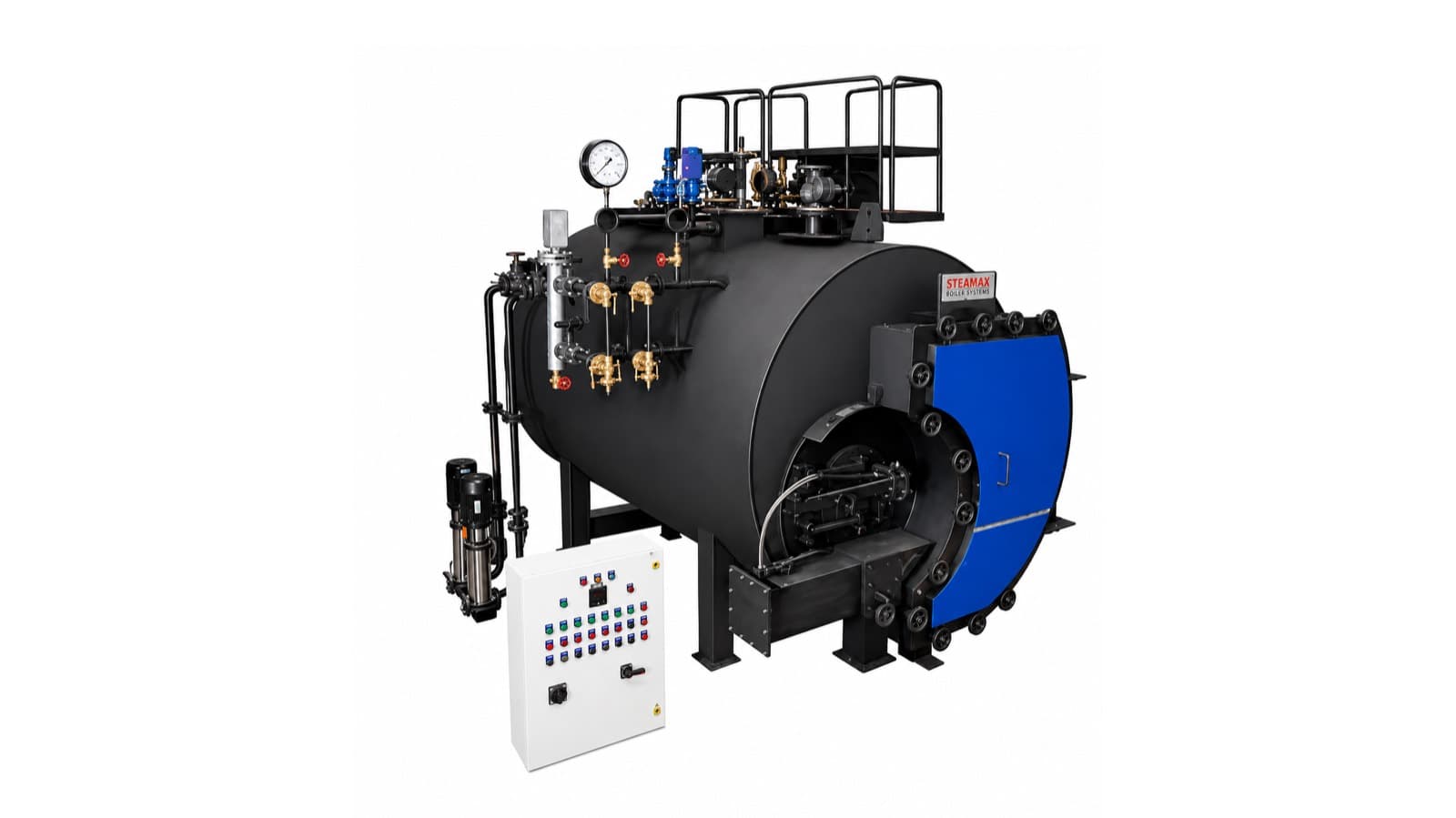

Steamax Packaged Boiler
Compact packaged steam generation for dependable daily operation.
Steam boilers
- Steam capacity
- 1,000–6,000 kg/hr
- Working pressure
- 10.54–24.5 kg/cm²(g)
Product overview
The Steamax packaged boiler range combines three-pass, fully wet-back construction with flexible furnace arrangements. It is designed for quick installation, straightforward operation, and consistent steam delivery across a wide range of industrial duties.
Why this product
- Fully insulated, rugged packaged design
- Water-surrounded furnace helps minimize radiation losses
- Fuel-flexible configuration for varied plant requirements
- Quick to erect, connect, and commission
- Operator-friendly automatic control options
Technical data
Key specifications at a glance
- Model range
- SMB-10 to SMB-60
- Steam capacity
- 1,000–6,000 kg/hr
- Working pressure
- 10.54–24.5 kg/cm²(g)
- Steam output
- Saturated process steam
- Construction
- Three-pass, fully wet-back
- Furnace arrangement
- Single or twin furnace
Series configurations
02
SMB-TF Series
Twin-furnace arrangement available across the larger SMB-50 and SMB-60 models.
Applications
Built around real process needs
Food and beverage processingTextile productionGeneral manufacturingIndustrial process heating
Design standards
Boiler configurations are available to suit the applicable inspection and design requirements.
IBRBSASME
