01
Reciprocating grate
Automated fuel-bed movement for steady combustion and ash discharge.
SMB-M / SMB-MF Series

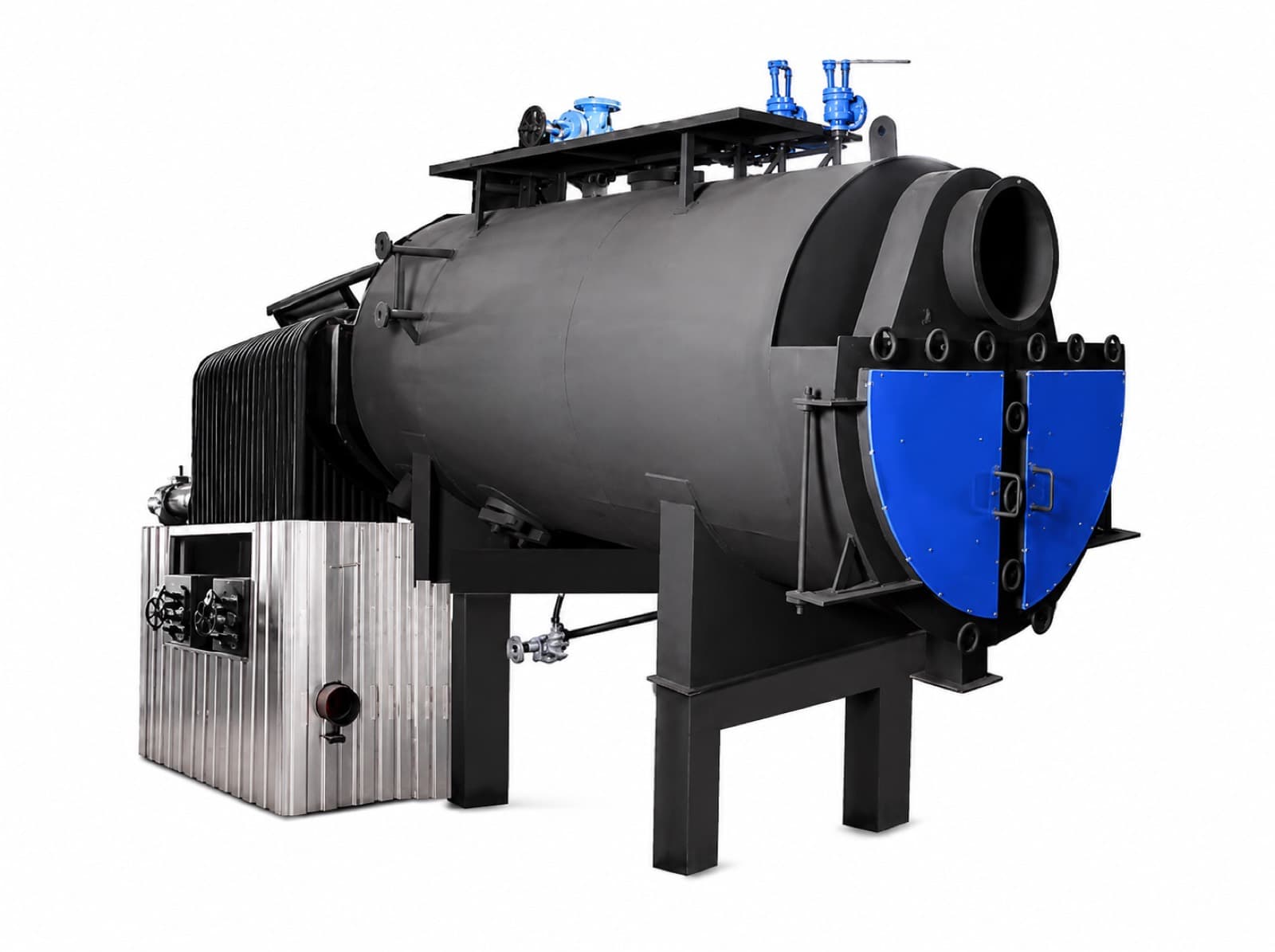

Steamax Combo Boiler
High-capacity multi-fuel steam generation with a water-wall and shell design.
Steam boilers
- Steam capacity
- 4,000–12,000 kg/hr
- Working pressure
- 10.54–32 kg/cm²(g)
Product overview
The Steamax Combo series combines a finned water-wall furnace with shell-type boiler construction for efficient heat transfer and rapid steam generation. Its large external furnace and multiple grate choices make it suitable for a broad range of solid fuels.
Why this product
- Finned water-wall panels support higher heat transfer
- Combination construction supports strong thermal efficiency
- Natural circulation enables quick steam generation
- Large furnace accommodates multiple solid fuels
- Superheater configurations can be engineered when required
Technical data
Key specifications at a glance
- Model range
- SMB-M-40 to SMB-M-120
- Steam capacity
- 4,000–12,000 kg/hr
- Working pressure
- 10.54–32 kg/cm²(g)
- Construction
- Water-wall and shell combination
- Furnace
- Large external furnace
- Circulation
- Natural circulation
Grate and fuel options
02
Travelling grate
Continuous grate movement suited to sustained industrial steam loads.
03
Vibrating grate
Alternative fuel-bed handling for selected biomass and solid-fuel duties.
Applications
Built around real process needs
Biomass-fired steam plantsAgro-processingLarge manufacturing facilitiesContinuous process industries
Design standards
Boiler configurations are available to suit the applicable inspection and design requirements.
IBRBSASME
